Portable fence walkway crowd control barrier/galvanized steel bike
rack barricades

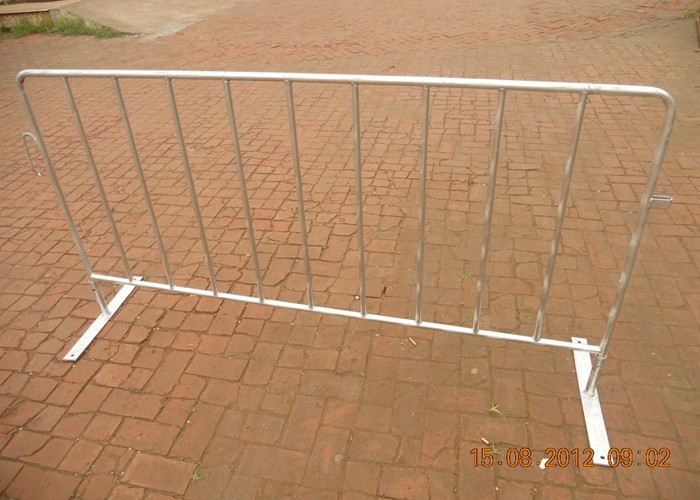

Crowd control barrier description:
Heavy-Duty Crowd Control Barricade is manufactured to withstand the most demanding circumstances of
any venue. These lightweight, steel and aluminum constructed
barricade sections only require one people for set up and takedown.
In addition, each section is equipped with the most effective – and
yet the most simple – locking mechanism on the market, so that
barricade walls of all sizes take only minutes to assemble. Each
section can be folded compactly to fit almost any storage space.
Our Crowd Control Barricades are sure to complement any
performance.
AU And New Zealand Market
Panel Size: 2200mm(L)×1100mm(H)
Frame: 25mm O.D.
Infill Pickets: 20mm O.D.200mm spacings
Weight : 18.5kgs
Finish: Hot Dipped Galvanised to New Zealand Standard - 42 Microns
Feet: Flat Feet - removable
Uk Market or USA Market
Height: 1100mm
Length: 2500mm or 2300mm
Weight : 21Kg
Material: Mild Steel
Bar infill: 16mm O.D.
Frame: 38mm O.D.
Wall thickness : 1.5mm
Hook & Eyes: Bottom one is 470mm and Top one is 870mm
Finish: Galvanised only or Galvanised & colour coated,
(RAL colour must be specified)
Specification of crowd control barrier:
| Specifications | Normal Size |
| Panel Size (mm) | 1100*2100, 1100*2200, 1100*2500 or as your request |
| Frame Tube (mm) | 20, 25, 32, 40, 42 OD |
| Frame Tube Thickness (mm) | 1.5, 1.8, 2.0 |
| Vertical Tube (mm) | 12, 14, 16, 20 OD |
| Vertical Tube Thickness (mm) | 1.0, 1.2, 1.5 |
| Tube Space (mm) | 60, 100, 120, 190, 200 |
| Surface Treatment | Hot dipped galvanized or Powder coated after welded |
| Feet | Flat feet, Bridge feet and Cross feet |
Easy to deploy
Our temporary steel barricades can be lifted with no more than 2 people and no special equipment
or tools. However, we recommend that each banded stack be offloaded
with a forklift truck to make the deployment as quick and easy as
possible.
Different specifications are available according to customers'
special inquiry or detailed drawings.
Crowd control barrier frames are made from durable 1-1/2" OD 16
gauge steel framing, while uprights are made from 1/2" OD 16 gauge
steel tubing. Uprights are fully inserted into the frame before
welding, providing extraordinary strength.
Choose from two foot systems: a detachable foot(bridge and flat)or
a fixed foot. The feet are removable which makes transportation and
storage much easier and more efficient.
Barricade interlock using the industry standard hook and half-loop
fastening system provides a union that prevents a single barricade
from being removed from a continuous line of barricades.
Packaging and Shipping:
1>There is a layer of bubble wrap at the bottom of pallet, which
can protect the last barrier;
2>There is a small piece of carton paper between each two
barriers to prevent rubbing against each other;
3>There is also carton paper under the pacing belt;
4>Finally all barriers will be packed by several layers of
plastic film.
Welcome Your Enquiry About Crowd Control Barrier Sincerely.
